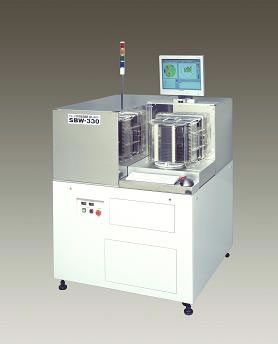

Wafer Bow/ Warp Measurement System SBW-330

Wafer Bow/ Warp Measurement System SBW-330
SpecificationSBW Series
objectsilicon single crystalline wafer, glass support
diameter100～450mm
MeasurementThickness、TTV、Bow/Warp
sensorcapacitive, optical sensor
thickness range700～1,000μm
accuracy±0.5µm
repeatabilityσ=0.1µm
display resolution0.01µm
duration4lines,2mm pitch:≦48sec/wafer
