Wafer Flatness Measurement System LGW-3020FE

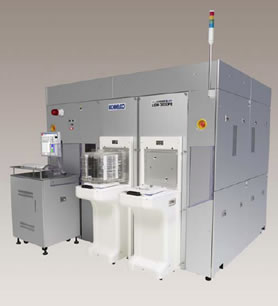

Wafer Bow/ Warp Measurement System SBW-330
SpecificationLGW Series
objectsilicon single crystalline wafer , glass support
diameter200～300mm
Measurement Thickness, Bow/Warp, Flatness(GBIR, GFLR, GF3R, etc.)
sensorcapacitive, optical sensor
thickness range650～1,000μｍ
accuracy±0.5μm
repeatabilityσ=0.1μm
display resolution0.01μm
duration5mm pitch： ≦63sec/wafer
10mmpitch： ≦ 46sec/wafer
TSV/BSI process TOP
