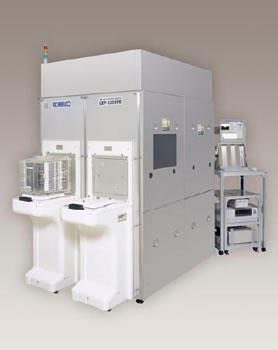

Wafer Edge Profile Monitor LEP-2200FE

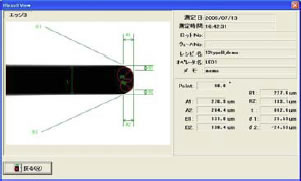

Display

Repeatability
		σ
Edge	Length	1μm(Type A,B) 2μm(Type C)
	Angle	0.1°
	Radius (R)	5.0μm
	Thickness	0.5μm
Notch	Length	2μm
	Angle	0.1°
	Radius (Vr)	5μm
Diameter		3µm
Notch chamfering width (Option)		1µm
