1. System for Analysis in Non-air Atmosphere

• Disassembly of batteries, cleaning of electrodes, and other pre-treatment processes are performed in the glove box, in which temperature and the oxygen concentration are maintained at -60^oC or below and 10 ppm or below, respectively, in argon atmosphere. After a battery is disassembled in the glove box, its electrode components are put in transfer containers for each analysis system that are tightly closed with argon gas. Each container is transferred to each analysis system and attached to its loader, and then the electrode component is moved into the analysis system.

• Table 1Analyses that can be performed in the absence of air

  Analysis	Purpose
  SEM-EDX	Determination of the crystallographic structure and morphology of electrode components and separators at the micrometer level
  TEM-EDX-EELS-ED	Determination of the crystallographic structure, elements, and state, and structural analysis of positive and negative active materials of electrodes at the nanometer level
  XRD	Determination of the crystallographic structure of positive and negative active materials of electrodes
  XPS	Analysis of the state of surface coating (SEI film) Determination of elements of the electrode surface
  Reflection EELS	Structural analysis of the electrode surface
  HI-RUPE	Structural analysis of the electrode surface Analysis of the state of surface coating (SEI film)
  AES	Determination of elements of electrode components in the micrometer region
  GD-OES	Determination of the elemental distribution in a region of electrode components from the surface to depth (including the distribution of Li)

2. Examples of surface analysis

2-1 X-ray Photoelectron Spectroscopy (XPS)

Figure 1 shows results of XPS of the negative electrode removed from a degraded Li-ion battery for mobile phones—batteries described in this article were all discharged. For comparison, results of analysis in air are also shown. The positions of the Li 1s photoelectron spectrum are different between the analyses in the presence/absence of air, indicating that the chemical state of Li has changed. This result, combined with those from the photoelectron spectra of C 1s and O 1s, suggest that oxide, hydroxide, fluoride, and other complex compounds of Li in the absence of air mostly altered to Li₂CO₃ in the presence of air. As shown in this example, it is obvious that components of the negative electrode undergo alteration in the presence of air. Therefore, analysis in the absence of air is indispensible to inhibit alteration.

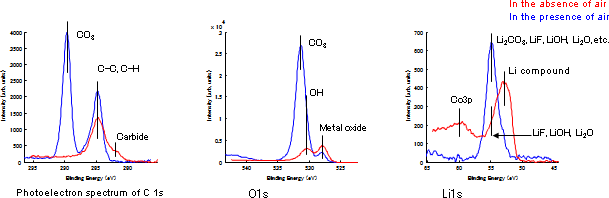

Figure 1Comparison between XPS of the degraded negative electrode of a Li-ion battery in the presence/absence of air (Photoelectron spectra of C 1s, O 1s, and Li 1s)

2-2 Reflection Electron Energy Loss Spectroscopy (EELS)

Reflection EELS provides smaller changes such as oxidation and bonding of specific elements on the specimen surface by measuring photoelectrons that are emitted from the specimen exposed to an electron beam. We have our proprietary system that has been optimally designed to reflection EELS.
Figure 2 shows comparison of reflection EELS of core loss spectra of Co in LiCoO₂ used in the positive electrode for a Li-ion battery in the presence and absence of air. The entire peak of the spectrum of Co in the presence of air is broad, suggesting that the specimen surface has reacted with compounds such as water and CO₂ and consequently presents a mix of various states. Figure 3 compares spectra of the positive electrode taken out of normal and depleted batteries. A new peak of Co emerged at the higher energy side because of depletion, suggesting an increase in the valency of Co that is consistent with a general view that a depleted battery loses Li and has increased Co oxide.

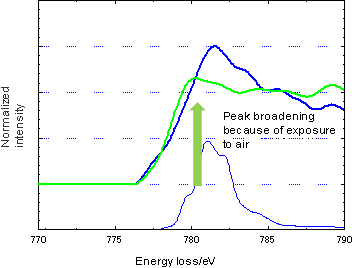

• Figure 2Comparison of reflection EELS of (core loss spectra of) Co in LiCoO₂ used in the positive electrode for a Li-ion battery in the presence and absence of air

  	Specimen of positive electrode (from a normal battery, in absence of air)
  	Specimen of positive electrode (exposed to the air after disassembly of a normal battery)
  	CoO

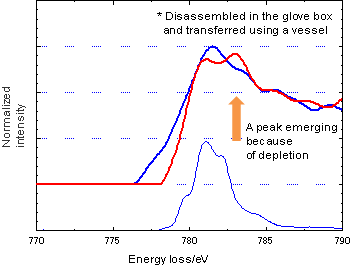

• Figure 3Comparison of reflective EELS (core loss) spectra of the positive electrode taken out of normal and depleted batteries

  	Specimen of positive electrode (from a normal battery, in absence of air)
  	Specimen of positive electrode (depleted)
  	CoO



3. Nanostructure Analysis Using Transmission Electron Microscopy (TEM)

Observation of positive and negative electrodes using TEM requires preparation of a thin film specimen using a focused ion beam (FIB) system. We modified the specimen inlet of our FIB system and created an air-tight specimen holder so that a series of specimen preparation processes can be performed in the absence of air.

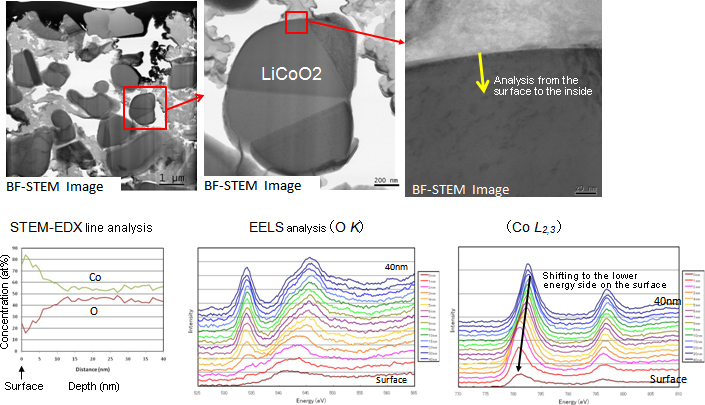

Figure 4 shows TEM images of the vicinity of the surface of positive active material LiCoO2. Energy dispersive X-ray (EDX) quantitative line analysis indicates that the oxygen concentration of the specimen surface decreased. Shift of the L shell absorption edge of Co found by EELS indicates that the valency of Co has decreased on the surface of the positive active material.

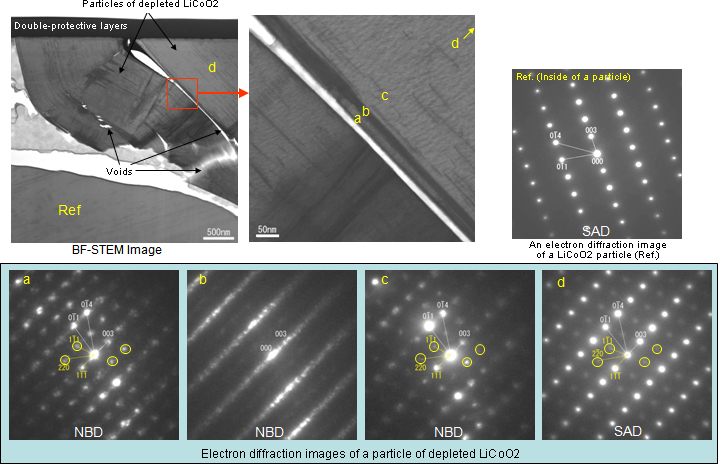

Figure 5 shows TEM images of particles of LiCoO₂, the positive active material taken out of a depleted battery. Analysis of electron diffraction images indicates that LiCoO₂ hexagonal. Depletion caused generation of voids along Side C of the hexagonal crystal. An electron diffraction image of the vicinity of the void surface shows streaks along Side C, indicating the presence of lattice defects.

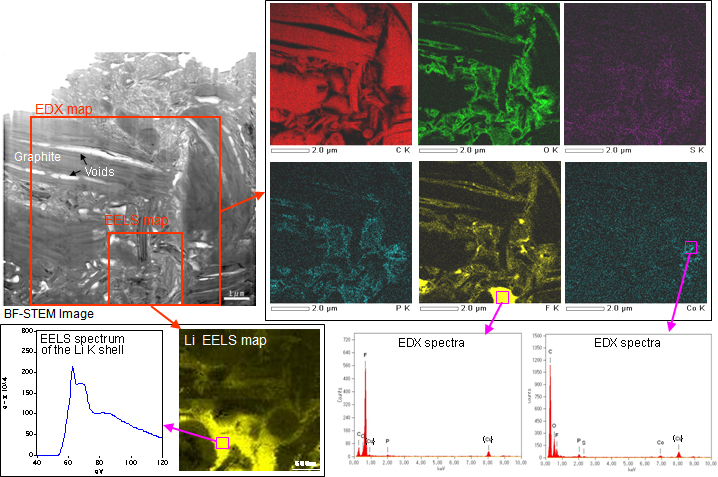

TEM images of the negative active material of the depleted battery in Figure 6 show that voids were generated in graphite of the negative electrode. EDX mapping indicates that there is a layer of reaction products. Combined with EDX, EELS determined in what state Li existed, namely LiF.

4. Scanning Electron Microscopy (SEM)

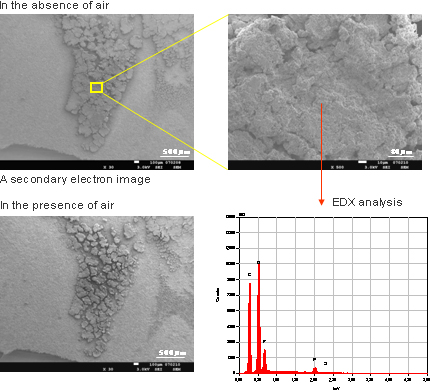

Figure 7 shows SEM images of the surface of the negative electrode of a depleted battery. Deposits are present on the electrode surface. EDX indicates that the electrode surface got cracked and oxidized when it was exposed to the air.

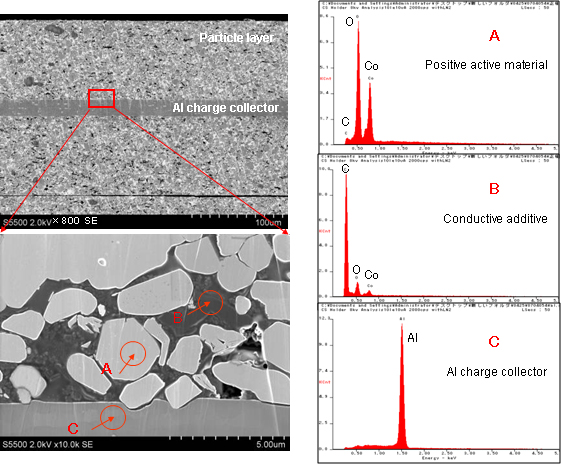

SEM images of a cross section of the positive electrode, which was treated using a cross-section polisher while it was exposed to the air, are shown in Figure 8. SEM enables analysis of the morphology and distribution of positive active materials and conductive additives, as well as investigation of clogging and deformation of the separator.

Conclusion
