ブリック内部異物検査装置

Si Brick Internal Inspection System

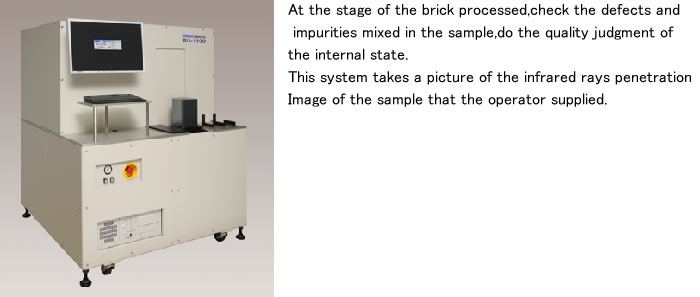

Si Brick Internal Inspection System Outline


Measurement Items

This system can detect internal defects, foreign materials (Ex. SiC, SiN), bubbles and cracks.

System Lineup

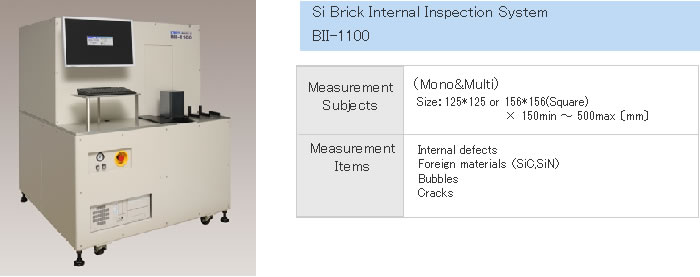

img_e_bll-1100.jpg※Contact us or model.

System Features

・Detection of internal Defect of Si Brick by infrared camera
・Non-contact and non-destructive measurement
・Mapping view of defect images is possible

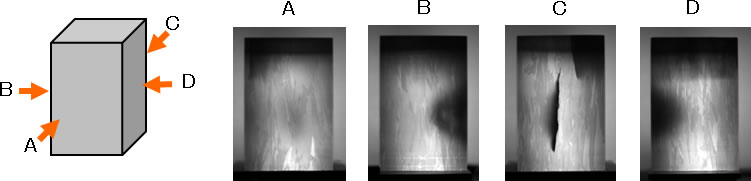

Mapping of shade picture taken by infrared camera
Threshold value about the binary coded processing of the shade picture can be input arbitrarily

Option

・ The "BII-1100/M" has the automatic marking function by the threshold setting and it also has the manual marking function by the operator.

Observation
